The Complete Guide to Spray Nozzles and Droplet Sizes
A practical, standards-aware guide to reading nozzle charts, calculating flow, balancing coverage and drift, and verifying the complete spray setup.

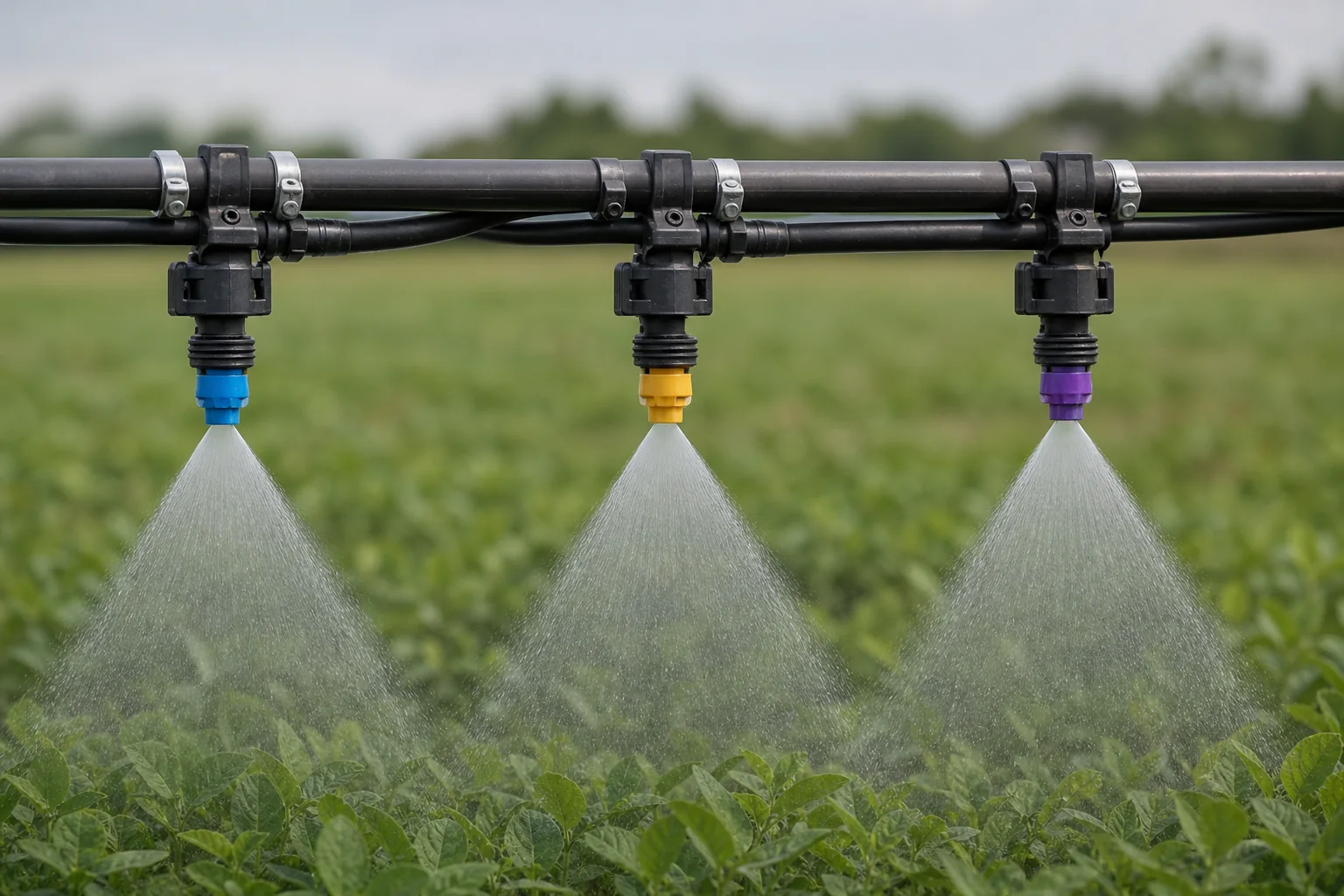

Quick answer
How do you choose a spray nozzle and droplet size?
Start with the product label’s droplet and equipment requirements, calculate the flow each nozzle must deliver, then use the current manufacturer chart to find an exact nozzle model, orifice and pressure that satisfies both.
Confirm spray pattern, boom height, calibration and the full pressure range before use. A nozzle size, colour or family name alone cannot tell you whether the setup is compliant or effective.
Visual guide
One nozzle produces many droplet sizes
A droplet class describes a measured spectrum, not one diameter shared by every droplet.
Interactive worksheet
Calculate required flow per nozzle
For metric broadcast spraying: flow = rate × speed × nozzle spacing ÷ 600.
Interactive chart-row verifier
Is the complete nozzle setup supported?
Check the evidence behind one candidate setup. This identifies gaps and conflicts; it does not select a nozzle or confirm compliance.
Evidence status
6 checks still unresolved
Resolve each item before relying on this candidate chart row.
Limit: this worksheet cannot interpret a label, test a spray spectrum, verify efficacy or determine whether application is safe or legal.
The visual above reflects the central point in ANSI/ASABE S572.3: a spray is classified by comparing its droplet spectrum with reference sprays under defined test conditions. The class supports relative comparison; it does not predict the complete field outcome.
The three markers describe spray volume, not the number of droplets:
- Dv0.1: 10% of the spray volume is in droplets smaller than this diameter. It helps reveal the fine, drift-susceptible tail.
- Dv0.5: half the spray volume is smaller and half is larger. This is the volume median diameter, or VMD.
- Dv0.9: 90% of spray volume is in smaller droplets and 10% is in larger droplets. It helps describe the large-droplet tail.
Two sprays can share a similar VMD while having different fine and coarse tails. That is why a single diameter is not enough to reconstruct a droplet class. Relative span—(Dv0.9 − Dv0.1) ÷ Dv0.5—is one way to describe the breadth of a measured spectrum, but it still does not reveal field deposition or replace the full test report. North Dakota State University’s droplet-spectrum guide provides an accessible explanation of the three volume statistics.
Which droplet-classification standard applies?
The edition matters because labels, regulator guidance and manufacturer charts do not all update at the same time. Do not translate a category from one edition into another from memory; use the edition or definition controlling the actual job.
| Reference | What it provides | What the applicator should verify |
|---|---|---|
| ASABE S572.1 | Reference-spray classification with eight named categories from Extremely Fine to Ultra Coarse. | Whether the label or chart expressly uses this edition and whether the exact nozzle–pressure result is classified under it. |
| ASABE S572.2 | APVMA explains that this corrected an Ultra Coarse reference-flow value from S572.1. | Do not assume every older chart was reclassified; check the edition printed on the data. |
| ASABE S572.3 | The current published ASABE standard for classifying spray nozzles by droplet spectra. | A current S572.3 chart does not silently replace an older edition named on a label. |
| ISO 25358 | A reference system and procedure for relative comparison of atomiser droplet-size spectra between measurement systems. | Confirm that the regulator, authorisation and manufacturer data accept or use this reference. |
ASABE lists S572.3 FEB2020 as its current droplet-spectrum classification standard. ISO describes ISO 25358:2018 as a reference system for relative comparison, and currently lists that edition as published and under review. APVMA recognises S572.1, S572.2, S572.3 and ISO 25358 for boom-sprayer nozzle classification, while Health Canada says approved labels use the ASABE S572.1–S572.3 standards. These are not globally interchangeable permissions.
Translate label wording into evidence—not a guessed nozzle
| Label wording | What it controls | Evidence to find |
|---|---|---|
| “Do not apply with sprays finer than [class]” | Sets a minimum permissible spray-quality class. | The exact model, orifice and pressure row showing that class or coarser under the named or accepted standard. |
| “Use [class] droplets” | Requires the stated class, subject to the rest of the directions. | Whether the wording means that class only or permits larger classes, plus the standard or regulator definition used. |
| “Do not use [pattern/nozzle type]” | Excludes equipment even if its flow or apparent spectrum seems suitable. | The full nozzle designation and pattern—not only its ISO flow colour or orifice number. |
| A pressure maximum or range | Restricts operation but does not identify droplet class by itself. | A chart row inside that pressure limit that also supplies the required flow, class and pattern. |
| A named nozzle list | Limits use to the listed products or configurations when the wording is mandatory. | The precise model, orifice, pressure and any adjuvant, controller or equipment conditions attached to the listing. |
Health Canada publishes examples of these label constructions and states that users must ensure their equipment produces the specified droplet size. US EPA likewise identifies droplet category, release height, wind and buffers as separate label controls. Read the 2026 Health Canada compliance guidance and EPA’s drift-label overview, then return to the current label for the job.
Droplet class, drift rating and buffer credit are different
| Term | What it means | What it does not prove |
|---|---|---|
| Droplet class | A measured spectrum compared with reference sprays under a named standard. | Field drift distance, deposition, biological efficacy or legal compliance by itself. |
| Drift-reduction rating | A tested equipment configuration compared with a defined reference system. | That every pressure, nozzle, boom or formulation earns the same rating. |
| Buffer credit | A regulator-accepted risk-mitigation value within a particular label or assessment framework. | A universal measured percentage reduction in physical drift. |
For example, the UK’s LERAP scheme awards star ratings by comparing a defined equipment configuration and operating envelope with a reference sprayer; three stars means measured drift was no more than 25% of that reference under the scheme’s test. In the United States, EPA’s Mitigation Menu provides buffer-reduction options only when the applicable label or bulletin directs the applicator to that framework. “Very Coarse” is therefore not another way to say “75% drift reducing.”
How to decode a nozzle designation
A code such as AIXR11003 combines several clues, but naming syntax varies between manufacturers. Always read the full designation and its current chart.
| Element | Usually indicates | Does not establish |
|---|---|---|
AIXR | The manufacturer’s nozzle family or internal design. | One universal pressure range or droplet class. |
110 | Nominal included spray angle at a stated or typical pressure. | Actual deposited width or correct boom height in every setup. |
03 | Nominal flow-capacity code—commonly about 0.3 US gal/min at 40 psi with water. | Application rate, droplet class or compatibility with a product. |
| Tip colour | Normally the ISO flow-capacity identification. | The spray-quality colour shown in a droplet chart. |
| Material | Polymer, stainless steel, ceramic or another construction. | A guaranteed service life in operating hours. |
How to read a manufacturer nozzle chart
The calculator gives the required flow, not the nozzle. With the default example—120 L/ha, 12 km/h and 0.50 m spacing—the required output is 1.20 L/min per nozzle. The next job is to find an exact setup that delivers approximately that flow while satisfying every label condition.
- Copy the label wording exactly. Identify whether it sets a minimum class, maximum class, range, nozzle restriction, pressure limit or named standard edition.
- Calculate required flow. Use the intended rate, realistic field speed and actual nozzle spacing.
- Find candidate rows. Look for complete nozzle models that deliver the flow inside their recommended pressure range.
- Read across the same pressure row. Confirm flow, droplet class, spray angle, height guidance and any stated test liquid.
- Check the standard. Do not silently substitute S572.3 data where a label specifically cites S572.1.
- Test the operating envelope. Confirm that speed changes, rate-controller pressure or PWM duty will not leave the permitted class or pattern range.
- Verify physically. Measure pressure at the boom, catch individual outputs and inspect transverse distribution before applying product.
The GRDC nozzle-selection guide is a useful worked reference for chart reading, calculations and calibration. Its data remain secondary to the current product label and manufacturer chart.
Nozzle patterns and where they fit
| Design | Pattern or mechanism | Important selection issue |
|---|---|---|
| Tapered flat fan | Output reduces toward each edge so adjacent patterns can overlap for broadcast uniformity. | Height, spacing, angle and boom movement determine whether overlap is adequate. |
| Even flat fan | Approximately even output across one individual band. | Usually intended for banding or a single-nozzle swath; overlapping can over-apply. |
| Pre-orifice | Reduces pressure before the final outlet and often produces a coarser spectrum. | Read the exact model and pressure cells; “pre-orifice” is not one droplet class. |
| Air induction | Uses a venturi to draw air into the liquid and often creates large, air-containing droplets. | Coverage, shatter, pressure needs and certified drift status are model-specific. |
| Twin fan | Splits output into forward and rearward sheets. | Canopy, orientation, travel direction, pressure and front/rear balance matter. |
| Cone, flood or stream | Uses a different geometric pattern and atomisation mechanism. | The label or application method may restrict the pattern; do not generalise from a flat-fan chart. |
Coverage and drift are a balance—not opposite buttons
Moving finer may increase
- droplet number at a fixed spray volume
- potential coverage of small or complex targets
- evaporation and the drift-susceptible fine fraction
- sensitivity to release height and turbulent air
Moving coarser may increase
- resistance to airborne movement and evaporation
- the chance of sparse coverage at a fixed volume
- bounce, shatter, run-off or soil loss for some targets
- the need to validate deposition and efficacy
A practical general rule is to use the largest droplet spectrum permitted by the label that still provides demonstrated control and acceptable deposition for the target and application method. “Coarser is always better” is not a safe substitute for label and efficacy evidence.
What changes droplet spectrum and performance?
- Nozzle design and orifice: Internal geometry is often the dominant equipment influence. Two tips with the same
03capacity can produce very different spectra. - Pressure: Increasing pressure generally raises flow and produces finer atomisation in conventional hydraulic nozzles, but the magnitude and class change are model-specific.
- Formulation and adjuvants: Surface tension, viscosity, concentration, mixing and recirculation can change real tank-mixture behaviour. APVMA notes that a nozzle classified Very Coarse with water may classify Coarse with a water–surfactant mix or pesticide, and recommends actual-product data where possible.
- Boom height and stability: Lower target-relative release height usually shortens airborne exposure, but only when the pattern retains the required overlap and the boom remains stable.
- Speed and control strategy: Pressure compensation or PWM can move the nozzle through different operating points. Check the lowest and highest expected setting—not just the nominal one.
- Weather: Wind, turbulence, humidity, temperature and inversions affect transport and evaporation. A droplet class does not override label weather limits.
- Wear and blockage: A changed orifice can alter flow, angle, pattern and spectrum even when the tip still looks usable.
See our guides to spray drift, weather conditions for spraying and Delta T for the conditions that sit outside a laboratory droplet-class test.
For the Australian testing context, read APVMA’s technical note on nozzle-classification standards. Its liquid-specific caution is a useful reason to record both the chart basis and the actual job setup.
Label-first nozzle selection checklist
| Decision | Evidence | Stop when… |
|---|---|---|
| Approved use | Current label and any supplemental authorisation for the crop, target, rate and method. | The use or application method is not authorised. |
| Droplet wording | Exact minimum, maximum or range and its stated standard or regulator definition. | The category or standard cannot be resolved. |
| Required flow | Rate, speed and spacing calculation using realistic field values. | The flow cannot be achieved within a suitable pressure range. |
| Chart intersection | Exact model + orifice + pressure with flow, class and named standard. | The chart omits the class, standard or required operating point. |
| Pattern and height | Manufacturer height table plus a practical pattern or distribution check. | Uniform overlap cannot be maintained above the target canopy. |
| Operating envelope | Expected speed, pressure, duty cycle, formulation and controller limits. | Any routine operating point leaves the permitted range. |
| Field verification | Verified gauge, catch test, pattern test, site weather and label buffers. | Output, pattern, conditions or restraints are outside limits. |
Jurisdiction quick guide
| Jurisdiction | Framework | What to verify |
|---|---|---|
| USA 🇺🇸 | Labels often cite an ASABE class and may add release height, wind, buffer, inversion or equipment conditions. | Use the exact label edition and manufacturer spectrum data. EPA explains that labels address droplet class, release height, wind and buffers. |
| Australia 🇦🇺 | APVMA recognises several S572 editions and ISO 25358 for boom-nozzle classification. | Use a manufacturer-rated nozzle and pressure that maintains the label category. Check current spray-drift definitions. |
| UK 🇬🇧 | Product authorisation and label conditions control; LERAP separately recognises defined low-drift equipment settings. | Do not convert a droplet class into a star rating. Verify the official equipment listing and operating envelope. |
| Canada 🇨🇦 | Health Canada recognises ASABE S572.1–S572.3 wording on labels. | Follow the current label and equipment manual; see Health Canada’s droplet-size guidance. |
| New Zealand 🇳🇿 | Product approvals can specify a minimum ASABE or BCPC category with other application controls. | Check the exact approval and ACVM label; one product’s category is not a national recommendation for another. |
| EU 🇪🇺 | ISO 25358 supplies a technical reference, while authorisations may require national drift-reduction technology or buffers. | Use the member state’s authorisation and official equipment list; there is no single EU-wide nozzle certificate. |
Inspect, test and maintain nozzles
Do not replace nozzles on a universal calendar or claimed material lifespan. Abrasive formulations, pressure, filtration, cleaning and operating time all influence wear.
| Check | What it can reveal |
|---|---|
| Individual flow at verified pressure | Blockage, wear, wrong tip or pressure imbalance. |
| Comparison with verified new-nozzle flow | Uniform wear that a boom-average comparison could miss. Approximately 10% deviation is a widely used replacement trigger unless a stricter rule applies. |
| Visual pattern check | Streaking, asymmetry, partial blockage or physical damage. |
| Transverse patternator test | Overlap and whole-boom distribution problems that flow testing alone cannot show. |
Depressurise equipment and follow the label and manufacturer’s cleaning method. Use required PPE and a soft plastic-bristled brush where permitted. Never clear a blockage with your mouth or damage the metering edge with wire, knives or drills.
Record the setup with Spraybook
Spraybook can store equipment details such as nozzle brand and type, typical pressure, water rate, droplet size, nozzle spacing, boom height and calibration dates. A completed spray entry can also preserve the job’s pressure, speed, droplet size, weather and equipment snapshot.
Spraybook records the setup you enter; it does not select a nozzle, calculate calibration, interpret the label, verify spectrum data or decide whether an application is safe or legal.
Key takeaway
A defensible nozzle decision is an intersection, not a shortcut: the current label defines the permitted outcome, the flow calculation defines the needed output, the manufacturer chart identifies the exact model–orifice–pressure combination, and calibration confirms what the sprayer actually delivers.
Review note: Standards, pesticide labels and regulatory frameworks change. Check the current label, named standard, manufacturer data and responsible authority, and have safety or compliance guidance reviewed for the products and jurisdictions in which it will be used.
